Model

Motor Power(kW)

Exhaust pressure (bar)

Volume flow

(m3/min)

Start method

Export size

Dimensions (LxWxH) mm

Unit weight(kg)

RXF19-8II

18.5

8

3.63















Permanent

magnet

frequency

conversion

G1 1/2

1550x930x1315

650

RXF22-8II

22

8

4.18

G1 1/2

1550x930x1315

670

RXF30-8II

30

8

6

G2

1670x1000x1500

945

RXF37-8II

37

8

7.1

G2

1670x1000x1500

970

RXF45-8II

45

8

9.5

DN65

1900x1300x1660

1390

RXF55-8II

55

8

12.35

DN65

2200x1500x1730

1900

RXF75-8II

75

8

15.6

DN65

2200x1500x1730

2000

RXF90-8II

90

8

20

DN80

2850x1800x1912

3000

RXF110-811

110

8

23.5

DN80

2850x1800x1912

3150

RXF132-811

132

8

27.3

DN100

3440x2000x2320

4500

RXF160-811

160

8

32.7

DN100

3440x2000x2320

4600

RXF185-811

185

8

39.2

DN125

3720x2250x2332

6000

RXF200-8II

200

8

43

DN125

3720x2250x2332

6100

RXF220-8II

220

8

46.2

DN125

3720x2250x2332

6300

RXF250-8II

250

8

52.8

DN125

4600x2300x2430

8200

RXBF250-8II

250

8

52.8

DN125

5050x2300x2430

9600

RXBF280-8II

280

8

58

DN125

5050x2300x2430

9700

RXBF315-811

315

8

66

DN125

5050x2300x2430

9800

RXBS355-8II

355

8

70

DN150

5000x2380x2750

13500

RXBS400-8II

400

8

80

DN150

5000x2380x2750

14000

RXBS450-8II

450

8

90

DN150

5000x2380x2750

14500

RXBS500-8II

500

8

100

DN150

5000x2380x2750

15000

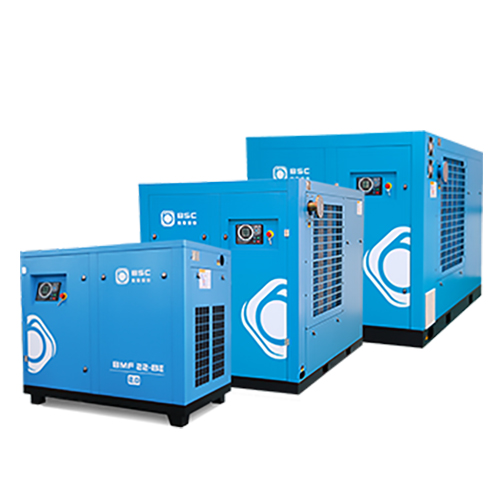

Single Stage Screw Air Compressor(图1)

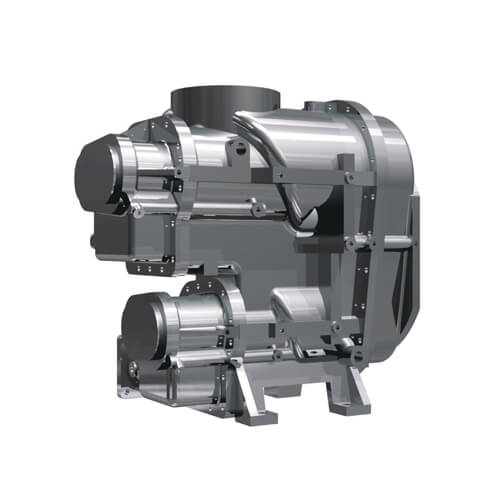

Advantages of the two-stage compression principle

♦The working temperature is lower than that of single-stage compression, which tends to be more energy-saving isothermal compression, and the theoretical energy saving is 8%.

♦Each stage has a lower compression ratio, reduces internal leakage, and increases volumetric efficiency by 5-10%.

♦It is beneficial to adjust the rotor of each stage to achieve a better line speed range of 25~3Sm/s, and obtain higher compression transfer efficiency.

Up to 32% power savingMaster the core technology of dual-system compressors, giving you energy-saving, safe and efficient production guarantee




鲍斯节能省电

Guarantee 1: Energy-saving and power-saving

10% more energy efficient than the national level 1 energy efficiency;

Compared with the national level 2 energy efficiency, it can save energy by about 23%;

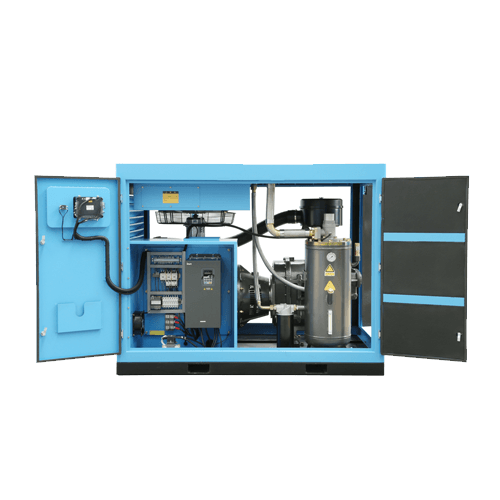

Double Stage Screw Air Compressor(图3)


鲍斯安全可靠

Guarantee 2: Safe and reliable

1.Wet screw compressor, spray cooling, low temperature in the compression chamber, safe and reliable; 2.The mechanical seal, the gas-liquid system and the lubricating oil system are completely separated to ensure the reliable operation of the unit; 3. Forced gas delivery, volume flow is not affected by exhaust pressure, suitable for a variety of work and working conditions;

Double Stage Screw Air Compressor(图5)


Double Stage Screw Air Compressor(图6)

Guarantee 3: Low Noise

1st and 2nd speeds are both lower than 2200rpm, and the operating noise is lower; The vibration of the unit is small, the machine can work smoothly and at a high speed, and it can realize the operation without foundation;

Double Stage Screw Air Compressor(图7)


Double Stage Screw Air Compressor(图8)

Guarantee 4: Quality products and service

1. High degree of automation, non-professionals can realize unattended operation; 2. Few wearing parts, reliable operation, long life, 3.low maintenance cost; Small size, light weight, less floor space;

主机终身质保
